GJ1110F Morse foot accelerator pedal soft shaft controller for construction machinery such as direct loader and green storage machine-control lever| control cable| push pull cable|marine engine control-Luoyang Guanjie Push Pull Cable Controller Co., Ltd

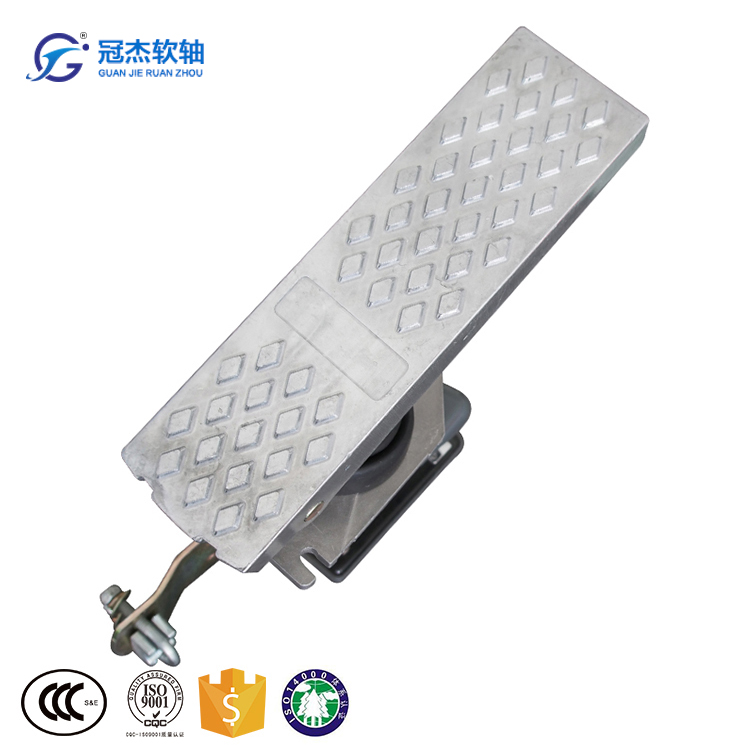

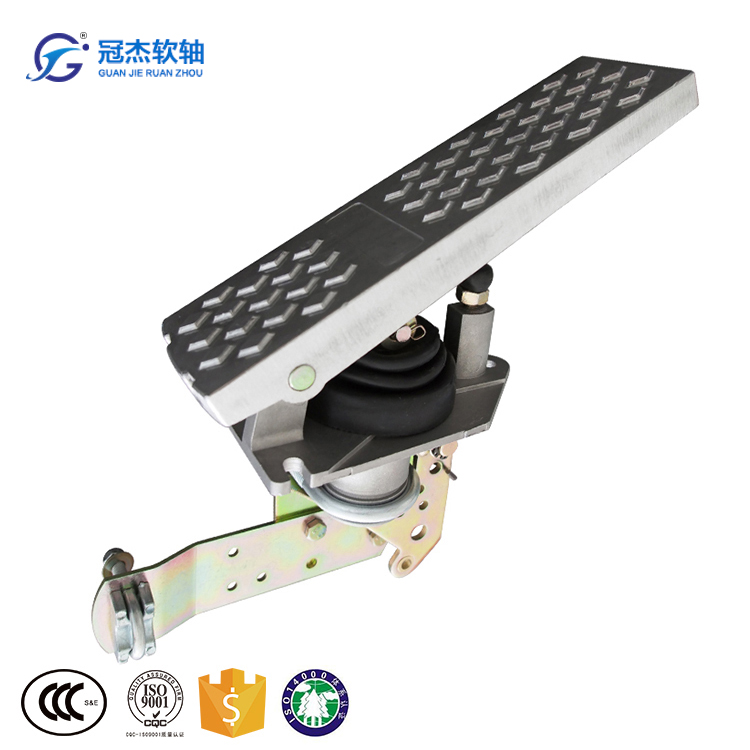

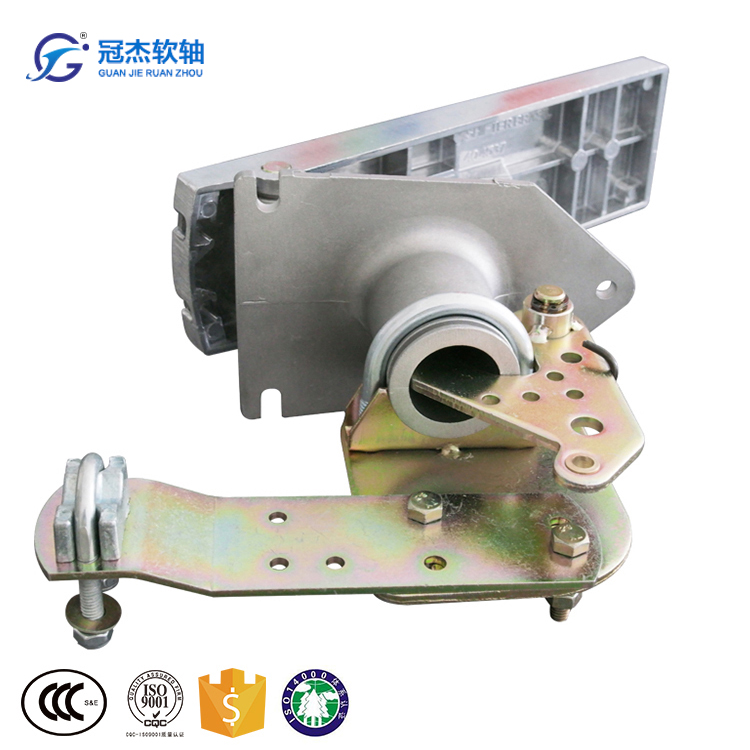

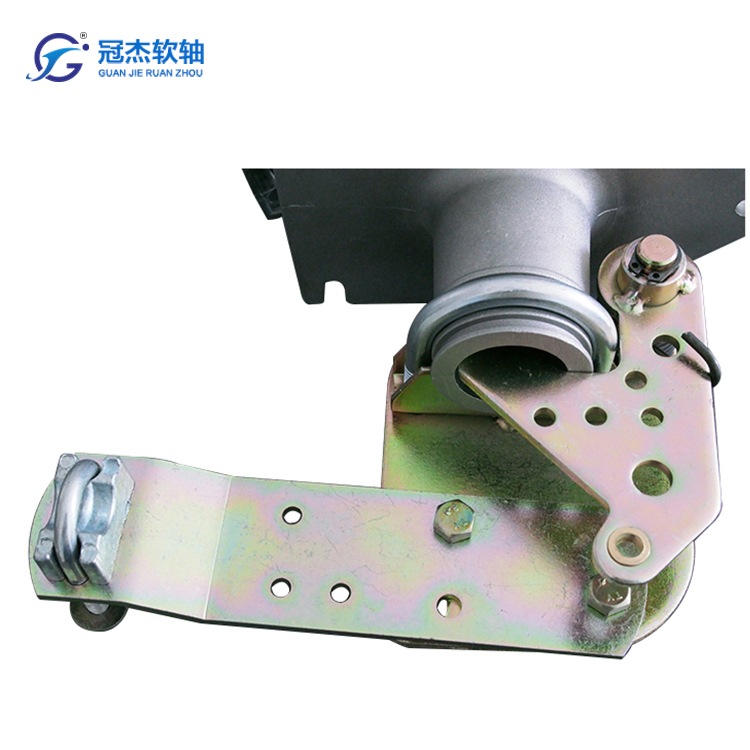

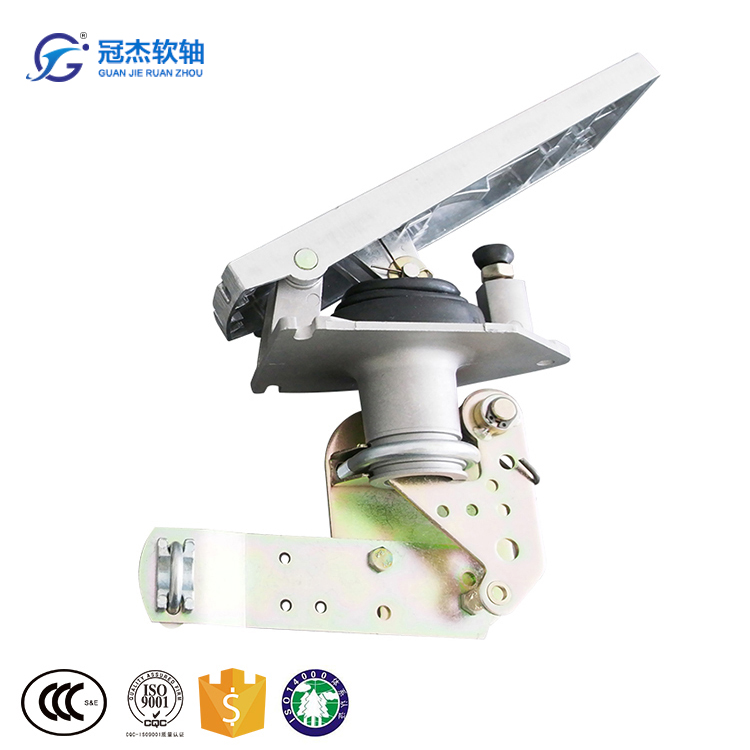

GJ1110F Morse foot accelerator pedal soft shaft controller for construction machinery such as direct loader and green storage machine

● Standard stroke :75mm

● 3 holes for installation

● Pedal angle is adjustable

● Control 1 piece of Pull cable only

● Optional bracket. Optional bracket. standard bracket length 125mm, Optional length 180mm

● Pedal standard length 260mm

Description

Stroke: 0-75mm

Pedal standard length: 260mm, customization.

pedal angle : can adjust

Fixing type: 3 holes

The distance of holes: 75mm, 115mm

Function: foot throttle controller of vehicles and engineering machinery, controls one pull cable.

Application: be fit for loader, road roller, grader, truck

Advantage: light weight, compact construction, easily installation, good seal, proof rust and anti-deformation

Specification

Luoyang Guanjie
