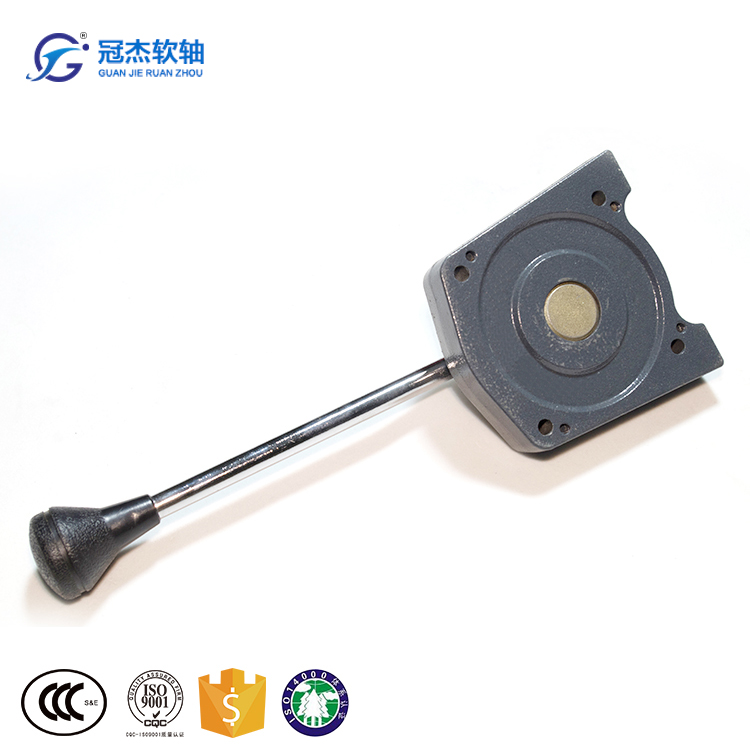

You Are Here : Home > Products > Hand Throttle Controls > GJ1103 > GJ1103 Throttle control lever for firefighting truck

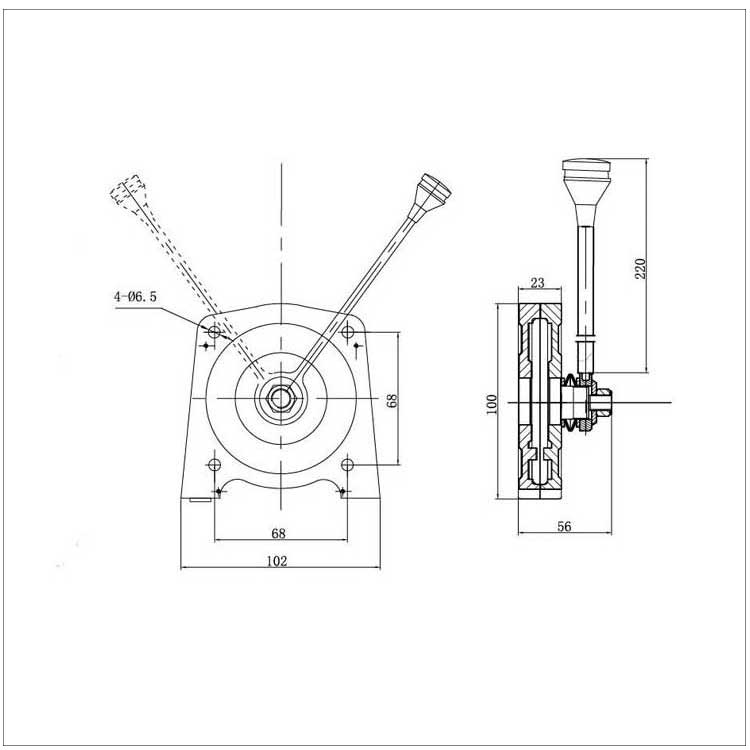

Description



Stroke

0-120mm, generally 80mm is adequate, bigger stroke bigger rotation angle, we will feel uncomfortable

Length of spline

56mm

The diameter of mounting guy wire

6 7 8 9 10.5 mm

Thickness of gear

8mm

Fixed type

4 holes

Thickness of shell

23mm

Distance of holes

68mm

Inner diameter of fixed orifice

6mm

Common handle shank

10*220mmas client request

Structure

Rope wheel

Material of shell

Aluminum alloy

Material of spline

  45 steelafter processing, quality firmer

Working principle

It can lock at any position by installing two Belleville springs between the handle and the shell which produce friction

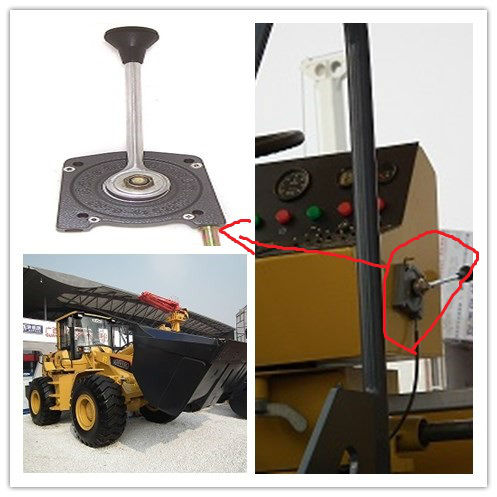

Application

Excavator, firefighting truck, bulk cement truck

Function

 Locking at any position, control a pull cable

Advantage

 Light weight, high strength, high rigidity, proof rust, anti-deformation

Characteristic

The material of Belleville springs is 20 silicomanganese, good elasticity, long life

Install limited device to avoid moving excessively the handle, damage to the flexible shaft



Specification







Luoyang GuanjieLuoyang GuanjieLuoyang Guanjie

Luoyang Guanjie

Factory introduction:



Factory history



14years

Certificate

ISO9001:2008TUV

Patents

10

Type of production

More then 70 pieces

Production line

11

Core competencies

push pull cable,  throttle control system

gear shift control system, concrete mixer control lever, boat control lever



Daily output

1000 pieces per day

Exports of Countries

South Africa, Germany, Spain, USA, Russia, Australia, New Zealand,Thailand, India, middle East Countries, so on
