You Are Here : Home > Products > Hand Throttle Controls > GJ1103A > GJ1103A Excavator hand throttle control lever
Description



 Stroke

0-80mm

Thickness of shell

15mm

The diameter of mounting guy wire

6 7 8 9 mm

Fixed type

4 holes

Distance of holes

43mm

Inner diameter of fixed orifice

6.5mm

Common handle shank

10*145mmas client request

Structure

Ratchet

Material of shell

Zinc alloy

Working principle

Wire rope made a reciprocating motion around the groove with the handle

Application

Down the hole drill, excavator, road roller, tractor, firefighting truck,  fuel ruck

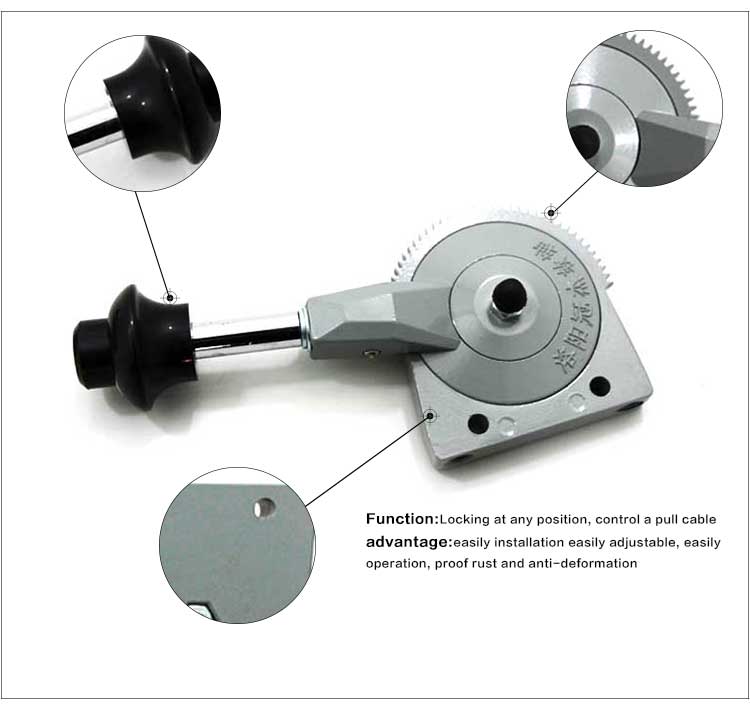

Function

  Locking at any position, control a pull cable

advantage

easily installation easily adjustable, easily operation, proof rust and anti-deformation

Characteristic

Can outgoing line from left, right and one side facilitating customer to choose.

Ratchet location, throttle relatively stable in harsh working environments.





Specification
